Designed as a high-efficiency corner cutting machine for paper, business cards, ID cards, labels, books, and plastic films.
Products

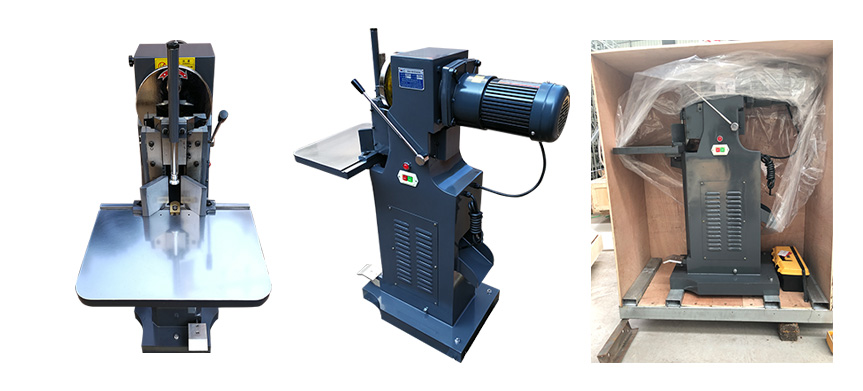

Electric Corner Cutting Machine SJQ-120A
Product ID : SJQ-120A
Product Attributes :
Product Description
Show details
Cutting effect
Advantage
· Foot switch operation, clutch control
· Fast cycle speed, up to 46 cuts per minute
· Can work continuously for 24 hours
· Suitable for rounded corners, flat corners, and beveled corners
· Strong cutting power
Technical Parameters
| Model | SJQ-120A |
| Max cutting height | 110mm |
| cutting speed | 90Times/Min |
| Voltage | Three-phase 220V/380V |
| Power | 1100W |
| Net weight of the machine | 270KG |
| Overall dimensions | 1100x550x1350mm |
| Mesa dimension | 320x460mm |
| automaticity | Semi-automatic |
| Round angle | R1-R24 mm |
| Straight angle | C1-C60 mm |
Differences between SJQ-120A and SJQ-120
SJQ-120A has a larger cutting table with larger rounded corner range and right angle range.
Corner rounding inserts size
